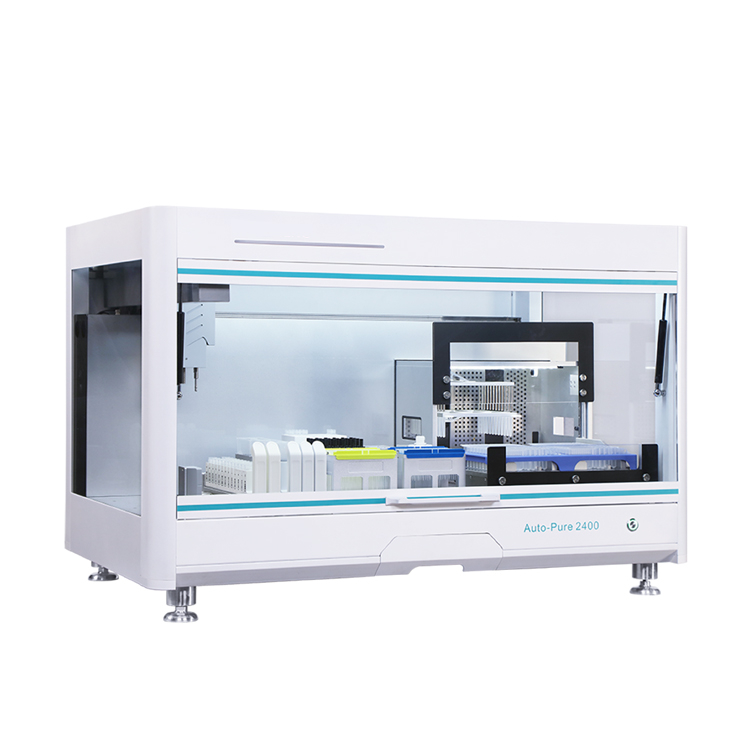

Nucleic Acid Purification System — Auto-Pure 2400M

Auto-Pure 2400M a high-throughput full automated nucleic acid extraction equipment. Compared with Auto-Pure 2400, in addition to basic functions, it can realize the automation of methylation process.
Auto-Pure 2400M is based on the magnetic bead method to extract nucleic acid. During the purification process, the steps of pipetting, lysis, washing, elution, and PCR system set-up can be done automatically in the workstation. One-stop operation, without manual intervention, can extract 24×10 mL samples at the same time, which is more efficient and convenient than manual and semi-automatic extraction. At the same time, standardized and automated operating steps avoid human error, the experimental results are more reliable and repeatable.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features：

Large volume extraction to meet special needs

The maximum reaction system of the sample library is 5 / 10 mL, which can meet the needs of cfDNA extraction
The elution well is eluted in a small volume to meet the nucleic acid concentration requirements

High-precision liquid handling

Dual-channel pipetting design, 1×(50 - 5000 μL),suitable for 1 mL /
5 mL pipettor and 1×(1 - 200 μL),suitable for 200 μL pipettor
The pipettor’s pressure detection technology can not only detect the height of the liquid level, but also empty suction, residual liquid volume and blockage detection
Detailed pipetting parameter settings for different liquids can effec- tively improve the accuracy

Methylation transfer special functional modules

Module temperature control range 4 °C ~ 105 °C
In order to meet the methylation requirements, 2400M adds a temperature control module to realize multi-stage temperature change
Thermo lid design can prevent reagent condensation from affecting the reagent concentration in the tube, and has the technology to prevent cross-contamination

Easy-to-learn operating software

Graphical user interface, program editing can be completed without complicated operations
Built-in comprehensive libraries of consumable arriers and liquids to reduce customer program matching time
Users can simply select according to their needs to complete the whole process of liquid handling, extraction, and PCR / qPCR setup

Specifications：

Model	Auto-Pure 2400		Auto-Pure 2400M	Auto-Pure 4800
Function	Automatic pipette samples / reagents, extract nucleic acid and setup PCR systems			Automatic pipette samples, extract nucleic acid and setup PCR systems
Information management	Support external USB scanner, barcode scanning function, automatic scanning function
Pipetting principle	Air displacement pipetting technology
Pipettor	One 5000 μL pipettor and one 200 μL pipettor			Two 1000 μL pipettors and one 200 μL pipettor
Pipetting range (μL)	1 - 5000 μL			1 - 1000 μL
Tips	Allsheng tips, and other tips compatible with this instrument
Liquid detection	Pressure detection: liquid level detection, tip clogging detection and residual liquid detection
Samples per run	1 - 24			1 - 48
Process volume	50 - 10000 μL			50 - 1000 μL
Extraction uniformity	CV ≤ 5 %
Single sample consumables	Support
Heating temperature	Elution and lysis temperature control: RT. ~ 120 °C
Cooling module	--			0 °C ~ 105 °C (optional)
Temperature control module	--	4 °C ~ 105 °C		--
UV sterilization	Separate UV lamp: extraction area, pipetting area and waste container area
Fan filter	Equipped with three HEPA filters
Instrument port	USB port
Power supply	220 V, 8 A, 50 / 60 Hz
Power	Standby 30 W, maximum 600 W			Standby 30 W, maximum 550 W
Noise	≤ 60 dB
Net weight	130 kg
