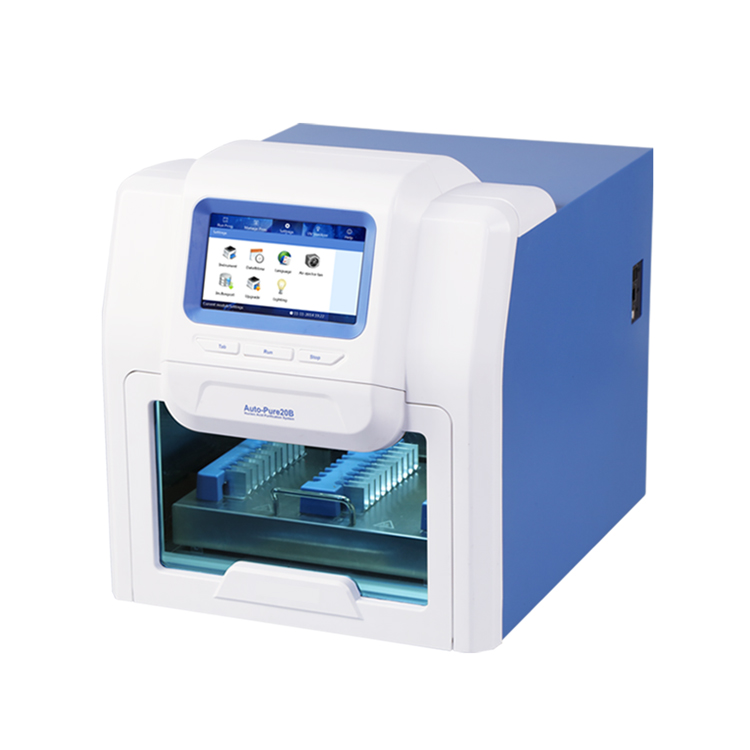

Nucleic Acid Purification System — Auto-Pure 20B

Auto-Pure 20B nucleic acid purification system is a device for extracting and purifying nucleic acid by using magnetic bead method. It has the advantages of high automation, fast extraction, stable results, and easy operation. Using a patented designed kit, the maximum sample processing volume can reach 5ml, 1-20 samples can be purified in one run. With different types of magnetic bead nucleic acid reagent sets, it can quickly extract DNA and RNA from animal and plant tissues, blood, body fluids, criminal specimens and other samples. It is widely used in scientific research, disease control system, food safety, forensics, clinical monitoring and other fields.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features：

•Stand-alone operation, 7-inch color touch screen display, easy to use

•Customize the temperature and program according to the requirements

•Short operation time, 15-30 min/time, can extract up to 20 samples in one run

•High yield of nucleic acid, low loss of magnetic beads, and good reproducibility of results

•UV sterilization function to avoid cross-contamination

•Open system, suitable for various magnetic bead extraction reagents

•Drawer design to prevent possible injuries

•APP software will be configured to monitor the system in real time through mobile devices

Technical parameter：

Model	Auto-Pure 20B
Throughpu	1~20
Process volume	50~5000l
Collection efficiency	>95 %
Magnetic rod number	20
Purification accuracy	100 copy sample positive rate>95 %
Stability	CV<5 %
Consumable	5ml cartridge +magnetic rod comb
Heating for lysis tube	Ambient temperature~120 ℃
Heating for elution tube	Ambient temperature~120 ℃
Operation	7-inch touch screen,3 shortcut keys,external mouse
Internal program	Preset 8 programs,max store 100 programs
Protocol management	Create,edit,delete,protocol mode
Extension interface	4 standard USB port,built-in SD card
Lighting	Yes
Pollution contro	UV light
Exhaust	Fan
Power supply	450W
Dimension (WxDxH)	400×520×450 mm
Weight	30 kg
