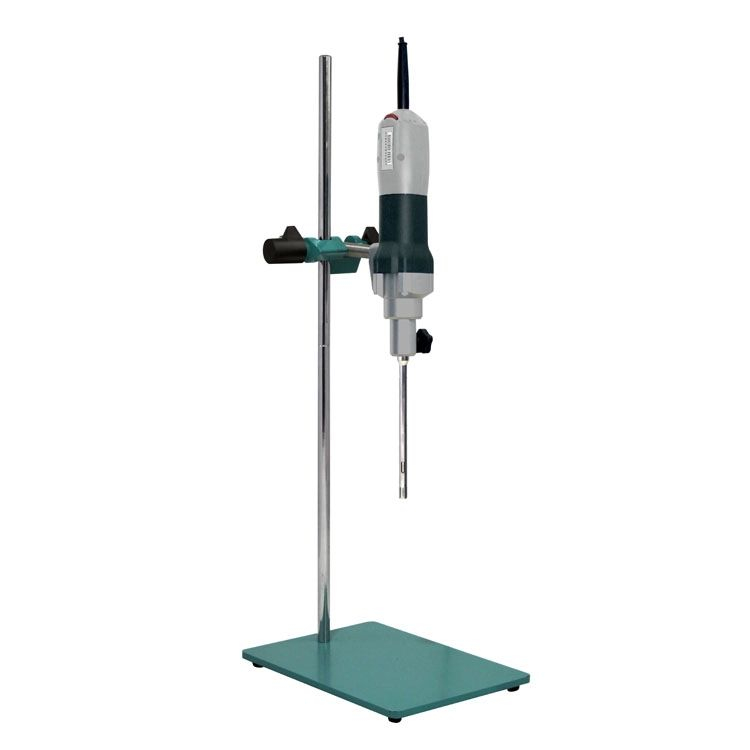

AD18 Dispersion Homogenizer

Rated frequency

50\60 Hz

Input power

710 w

Output Power

430 W

Rated torque

12.1 N.cm

Working mode

S1 ( Continuous)

Operation control method

speed control knob

Speed adjustment range - idle running

13000 ~ 34000 rpm

Working head material

Stainless steel 316L

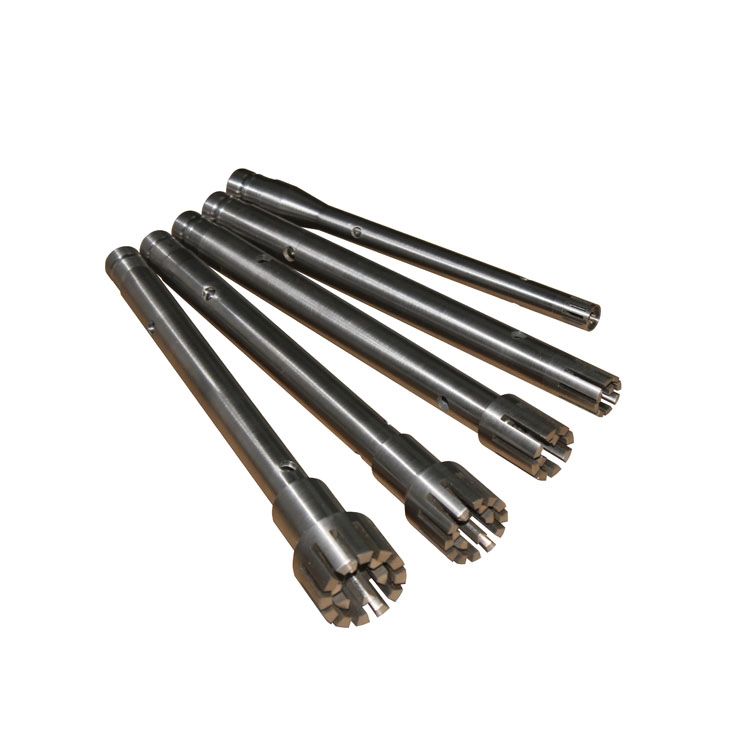

Working head configuration specifications

8\10\12\18\24 G

Maximum torque of working head

12 N.cm

Speed control type

6 gears

Restart protection function

Yes

Safe shutdown function

Yes

Allowable ambient temperature

not more than 40C

Allowable relative humidity

not more than 80%

Machine appearance size

215x 310x720 mm

Machine weight

8 kg

Mixing capacity (H2O )

15- 50

20~ 100

30- 800

50~ 1500

80~ 5000

Suitable maximum viscosity ( mPa.s )

1000

1000

1000

2000

5000

Maximum temperature (°C )

120

120

120

120

120

Overall length ( mm )

156

182

215

242

245

Stator diameter ( mm )

8

10

12

18

24

Work head material

SS 316L

SS 316L

SS 316L

SS 316L

SS 316L

Bearing material

PTFE

PTFE

PTFE

PTFE

PTFE

Rotor maximum linear speed ( m/s )

10

11

12

15

18

Minimum/maximum immersion liquid height ( mm )

15\105

25\130

35\150

45\160

50\165
