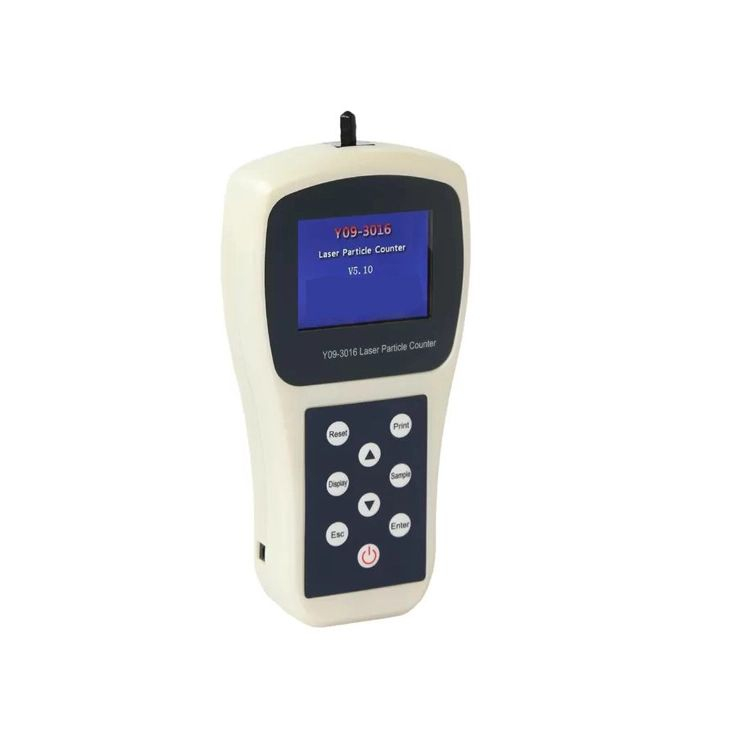

Y09-3016 0.1CFM (2.83LPM)-Handheld Particle Counter

Y09-3016 Handheld Particle Counter is used to detect the size and quantity of particles in the air per unit volume of the clean environments. lt can quickly check or validate lSO Class 5-9 clean rooms and controlled environments.With LCD display, the instrument uses laser diode as the light source. it has manyfeatures, such as slim design, light weight, high precision, simple operation, microcomputer control, and can store and print sampling resuits. it is widely used in the electronics, optics, chemistry, food and beverage, pharmacy and sanitation, biology precision machinery, aerospace, and other fields.

Availability:

Quantity:



Inquire Add to Basket

Product Description

The parameter of handheld particle counter

Outside Dim	300360126 mm³(WideDeepHigh)
Display	LCD
Weight	0.7kg
Battery	(Lithium Ion Battery),7.2V,2200mAh
Power Source	Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz
Size Channels	0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate	2.83L/min
Sample Time	1s-99h
Cycles	0-99
Hold Time	0-999sec
Delay Time	0-99sec
Light source	Laser Diode
Zero Court	<=10min
Alarm	ISO14644-1:2015/GMP:2015
Coincidence Loss	5%,2000000ps/cf
Operating Time	more than 5.5 hours
output	RS-232 to pc or printer via optional cable
Location Labels	0-999
Data Storage	1000 Samples (With PC Software)
Environmental	10degrees celsius-30degrees celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa
Standard feathure	suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier
Optional component	External printer
