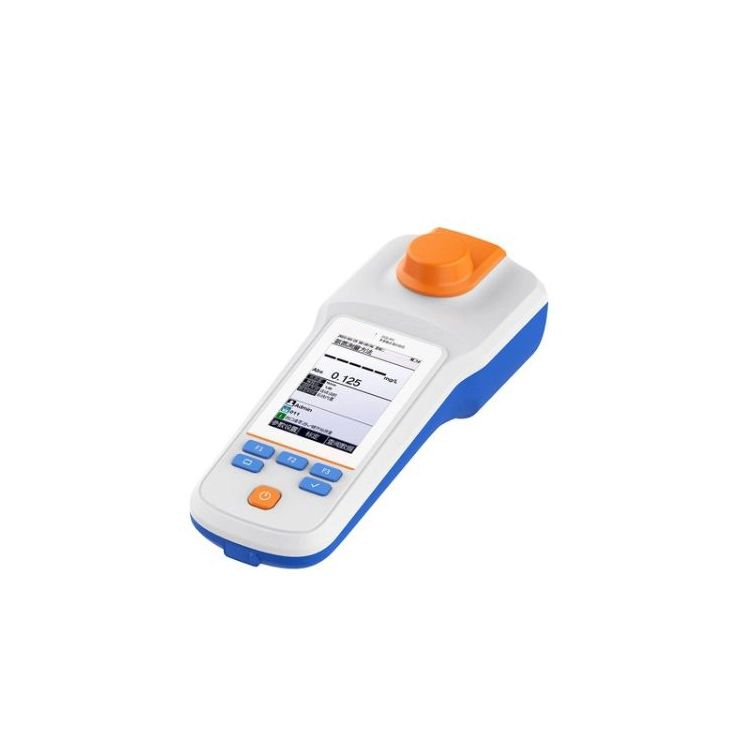

DGB-401 Multi-parameter water quality analyzer

The DGB-401 multi-parameter water quality analyzer (hereinafter referred to as the instrument) is a very high-precision analytical instrument. The instrument adopts new LED testing technology and integrates LED light sources of multiple wavelengths, abandoning the traditional complex and bulky optical system. The instrument has the advantages of small size and easy operation. It directly uses colorimetric tubes as vessels for digestion and measurement, which is convenient. User use. It is mainly suitable for measuring the quality of industrial wastewater, surface water, groundwater or other water in coking, papermaking, petrochemical, printing and dyeing, fur, tanning, pharmaceutical, reagent, food processing and other industries.
Availability:
Quantity:
  •  Using four LED light sources of 420nm, 470nm, 620nm and 650nm, it has long life and high precision.

  •  Built-in measurement methods: ammonia, high concentration COD, low concentration COD, total phosphorus, total nitrogen

  •  Adopt high-definition LCD screen, clear display and friendly operation interface

  •  Supports functions such as automatic shutdown, power-off protection and factory reset

  •  Support firmware upgrade function, allowing function expansion and personalized requirements

  •  IP65 protection level

  •  Standard pipette, digestion colorimetric tube, portable protective box

  •  Intelligently determines the end point, supports automatic reading and continuous reading

  •  Set the dilution ratio and automatically calculate the original concentration of the sample

  •  Optional built-in calibration curve or custom calibration curve

  •  Customized calibration curve, supports 2~6 points calibration

  •  Support data storage (200 groups each, 1000 groups in total), review, deletion, transmission and printing

  •  Comply with GLP and achieve data traceability

  •  Supports connection to a standard RS-232 serial port printer to print measurement results, with optional print formats

  •  With USB interface, it can be connected to PC through special communication software to realize data transmission.

  •  Powered by large-capacity lithium battery, supports connection to PC and mobile power supply for charging

  •  With battery low voltage reminder function and charging status reminder function

  •  Support backlight adjustment


Specifications:

Measurement parameters

Helium Nitrogen

Low concentration COD

High concentration COD

total phosphorus

Measurement methods

Nessler's reagent method

potassium dichromate method

potassium dichromate method

Molybdate spectrophotometry

Measuring range

(0.000-10.00)mg/L,
Can be expanded to 300mg/L

(0.000-150.0)mg/L

(150.0-1500)mg/L

(0.000-1.000)mg/L,
Can be expanded to 300mg/L

error

±5%

±8%

±8%

±10%

Repeatability

≤2%

≤3%

≤3%

≤3%

Need to be digested

/

~

~

~

light source

Light emitting diode (LED)

Light source wavelength

420nm

470nm

620nm

650nm

calibration

2-6 point calibration

data storage

200 sets each, 1000 sets of test results in total

cuvette

16mm colorimetric tube, 25mm colorimetric tube

Power supply

Rechargeable lithium battery, power adapter (input AC 100~240V; output DC 5V)

Protection level

IP65

Dimensions (mm)/weight (kg)

100x240x80;0.6
