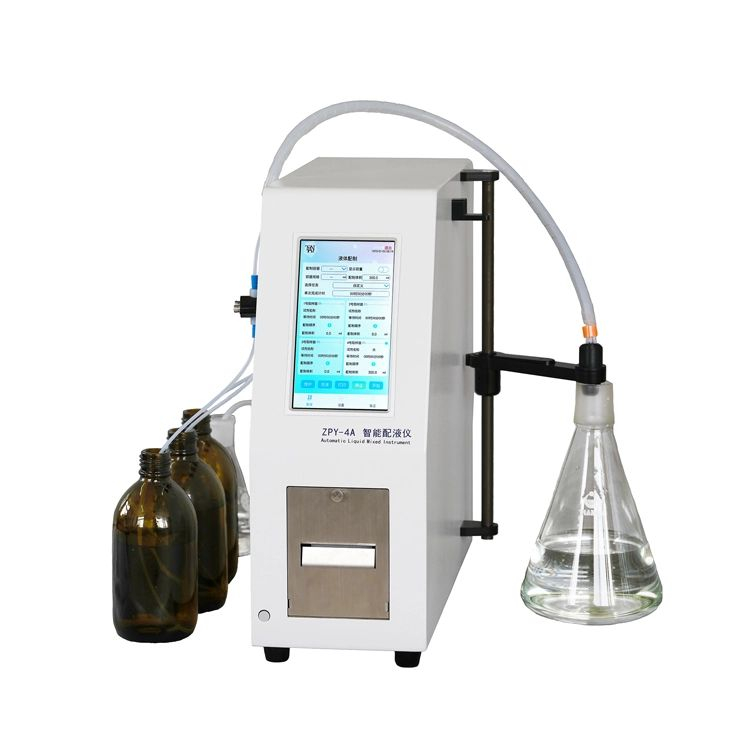

ZPY-4A Dispenser

Instrument features:

•  Using Android operating system, humanized interactive experience.

•  The sampling pipelines are independent of each other, effectively reducing sample cross-contamination.

•  Fully automatic reagent distribution is completed in one step, reducing or avoiding errors caused by manual reagent distribution.

•  The liquid inlet system uses stainless steel 316L, polytetrafluoroethylene, polyvinylidene fluoride, zirconia ceramics, etc.

•  Corrosion-resistant material, suitable for various organic and inorganic reagents.

•  According to the requirements of sampling volume and accuracy, different high-precision sampling systems and large-capacity

•  The sampling system greatly improves the efficiency and accuracy of distribution.

•  Combined with quantitative liquid dispensing methods and multiple liquid dispensing plans, the work process can be optimized and work efficiency improved.

The main parameters:

•  Configuration channels: 1-3 metering pumps, 1 peristaltic pump

•  Sampling volume: 100µl-9999ml

•  Sampling accuracy: Metering pump 1% (5ML) Peristaltic pump: 3%

•  Dispensing volume: 10µl-9999ml

•  Sampling speed: Metering pump: 0.5-200ml/min Peristaltic pump: 100-500ml/min

•  Working power supply: 100-240VAC, 50/60Hz, 75W

•  Working temperature: 10-40℃

• Suitable solvents: various organic reagents and inorganic reagent
