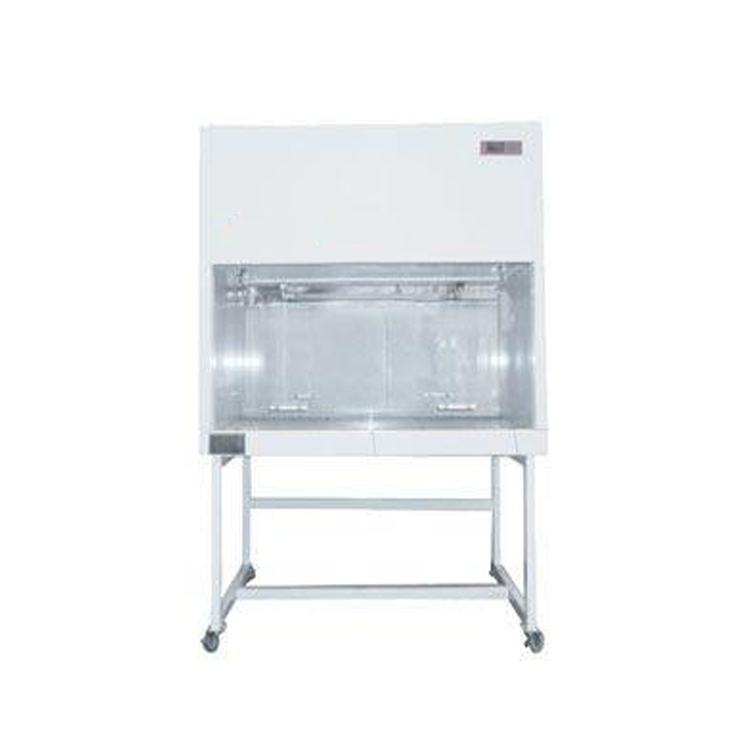

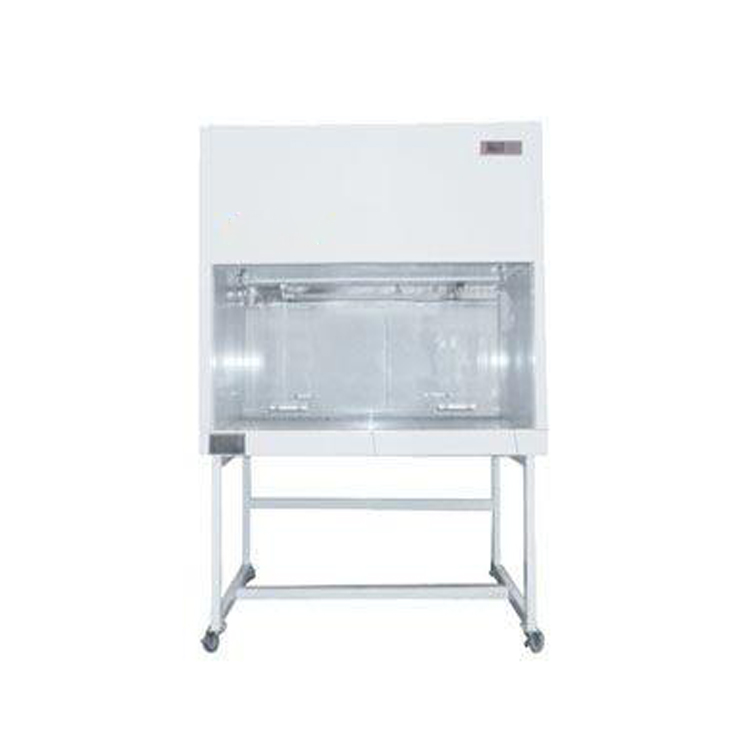

Vertical Laminar Flow Cabinet Double Sides Type BBS-DSC,BBS-SSC

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. This model is vertical laminar flow cabinet.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Specifications：

Model	BBS-DSC	BBS-SSC
External Size (WDH)	10406601770mm	14406601770mm
Internal Size (WDH)	940560545mm	1340560545mm
Work Surface Height	750mm
Display	LED Display
Airflow Velocity	Average of 0.3~0.5m/s
Material	Main Body: Cold-rolled steel with anti-bacteria powder coating
	Work Table: 304 stainless steel
Pre-filter	Polyester fiber, washable
HEPA Filter	99.995% efficiency at 0.3μm
Noise	<65dB
Front Window	Manual, 5mm toughened glass, anti-UV
Max Opening	310mm
UV Lamp	20W*1	30W*1
	Emission of 253.7 nanometers
LED Lamp	12W*1	16W*1
Consumption	350W	600W
Caster	Universal caster with leveling feet
Power Supply	AC220V±10%, 50/60 Hz; 110V±10%, 60 Hz
Standard Accessory	LED lamp; UV lamp*2; Base stand.
Optional Accessory	Electric height adjustable base stand
Gross Weight	150kg	186kg
Package Size (WDH)	11908901340mm	15908901340mm
