Feature:
1. P.I.D. environmental scanning micro-processing controller controls temperature accurately and reliable.
2. Digital LED display of preset & real temperature.
3. The working chamber is made of high quality sheet or corrosion-resistant stainless steel.
4. Each unit equips with high temperature safety glass viewing window, to observe clearly the object in the working chamber.
5. The air-tightness of the chamber door is adjustable, with a wholly shaped silicon rubber door sealing loop; so as to guarantee in-chamber high vacuum.
6. Over temperature safety cut off thermostat fitted with audio/visual alarm.
7. Vacuum drying ovens are well built and maintenance-free.

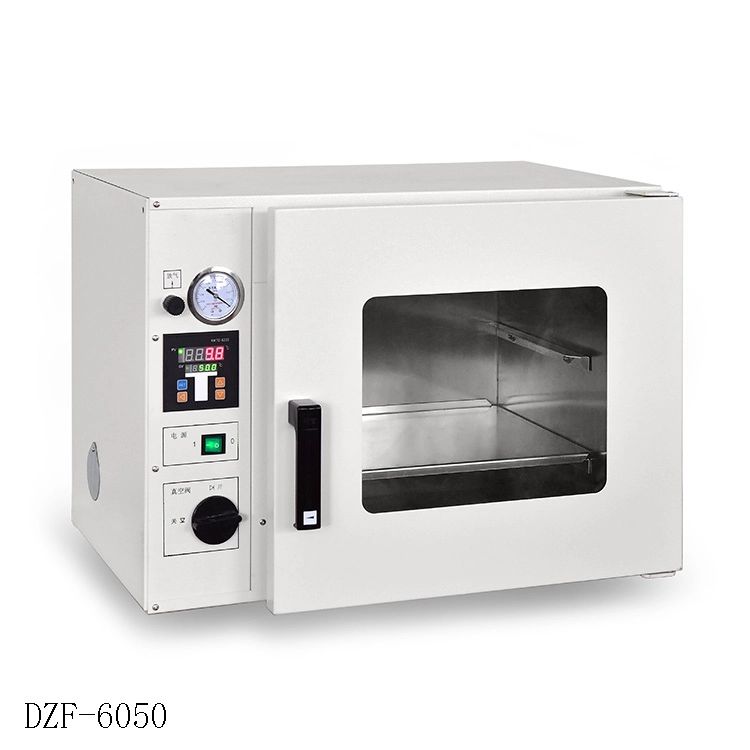

DZF-6050: The chamber walls are heated by plate heater attached to the sides, bottom and top of the chamber.

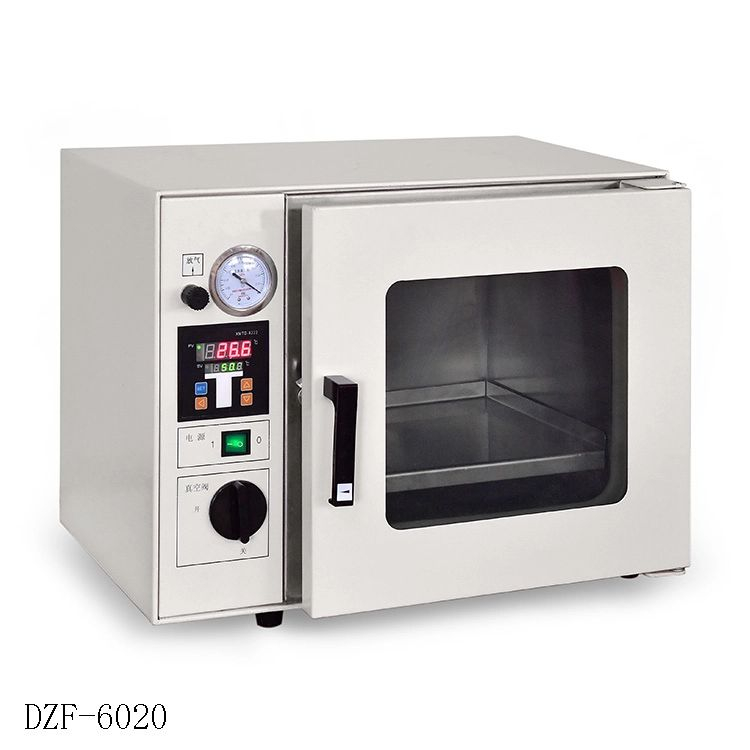

DZF-6020, 6030, 6090,6210: The heater embedded at the bottom of the shelves for quick temperature use.

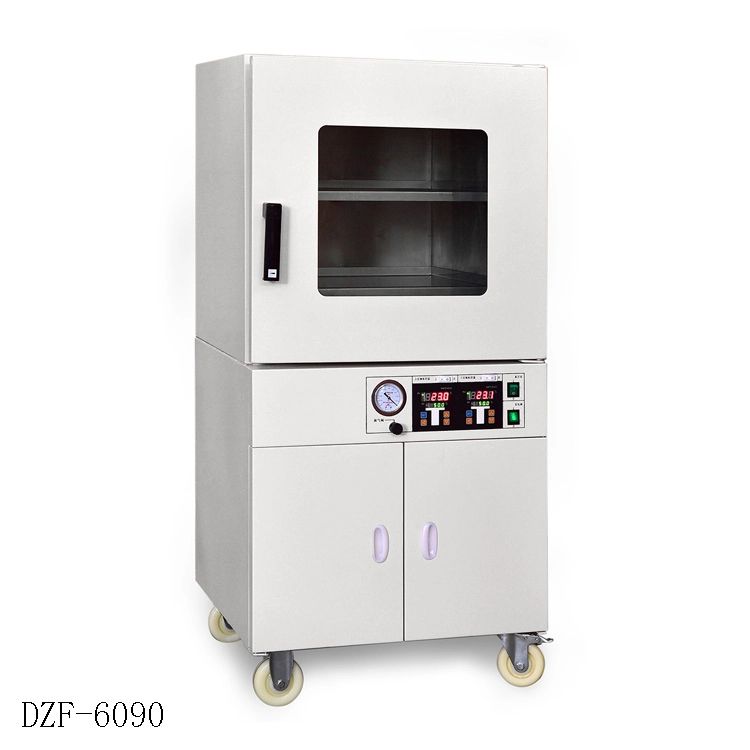

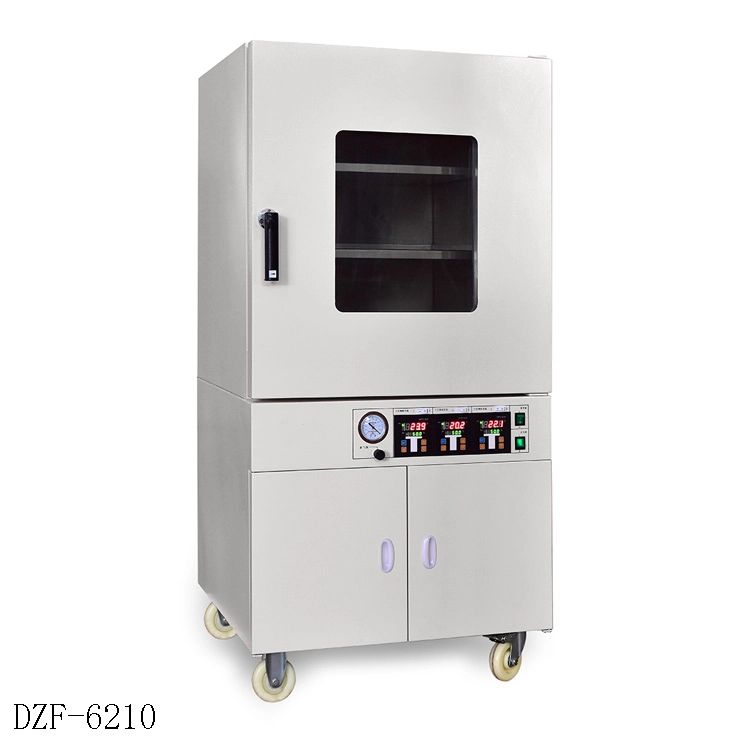

DZF-6090, 6210 equips with vacuum pump.
Optional:
1. Inert gas inlet valve
2. Drying tank (normal), (high humidity)
3. Vacuum pump 2XZ-2 (2 liters), 2XZ-4 (4 liters)
4. SMS monitoring and alarm system.
Specifications:
Model | DZF-6020 | DZF-6030 | DZF-6050 | DZF-6090 | DZF-6210 |
Capacity | 24 liters | 30 liters | 50liters | 90 liters | 210 liters |
Internal Dims (WxDxH mm) | 300x300x275 | 320x320x300 | 415x345x370 | 450x450x450 | 560x590x640 |
Power | < 350W | < 550W | < 1400W | < 1200W | < 2000W |
Control Mode | Microprocessor PID Controller |
Display | LED Display |
Temperature Range | Ambient+10~200 ℃ | Ambient+10~250℃ |
Display resolution | ± 0.1 ℃ |
Temperature Fluctuation | ± 1 ℃ |
Vacuum Range | < 133pa |
Material Internal | Stainless Steel |
Material External | Steel Plate with powder coating |
Material Insulation | Glass Wool |
Door Gasket | High Temperature Silicone Rubber |
