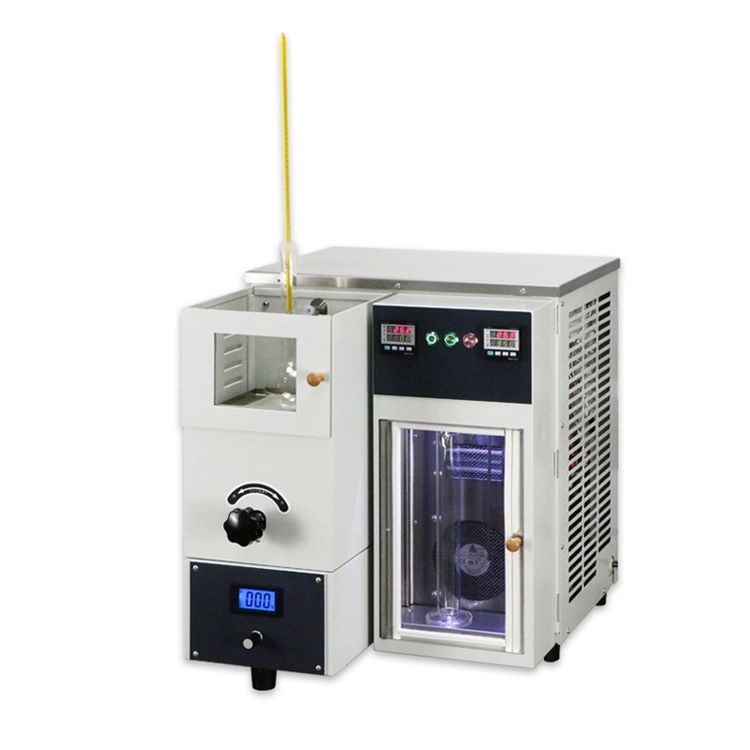

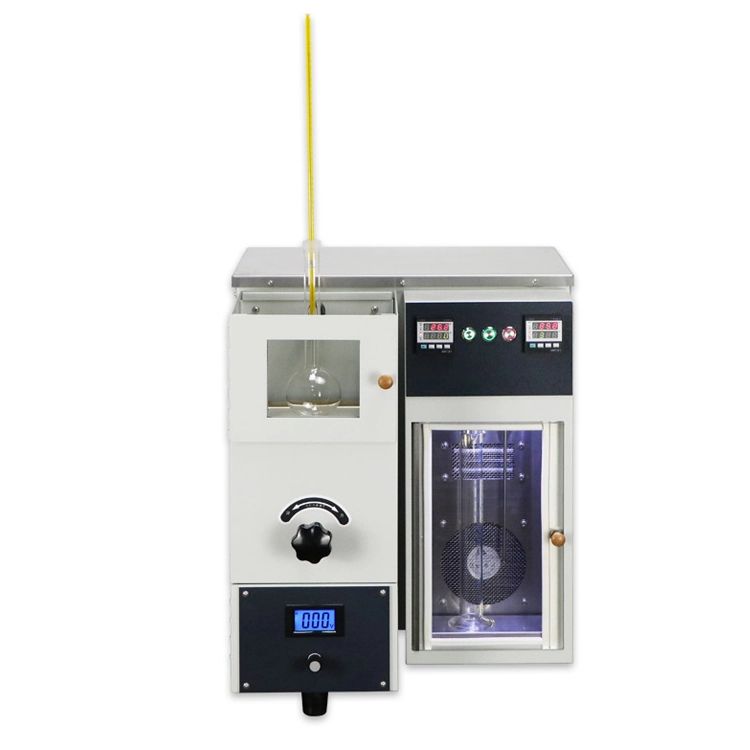

I.Main technical features
1. The instrument adopts aquartz heating furnace form to ensure the safety of the test, and the
heating power is continuously adjustable.
2.The height of the flask is adjusted by the lifting device, and the observation window of high-temperature and heat-insulating glass is equipped to observe the whole test process.
3.The condensate pipe water bath has temperature control function, which can be set and adjusted arbitrarily within the range of 0 ℃ ~ 60 ℃. The temperature in the bath is uniform and meets the test requirements.
4.The instrument is equipped with a cylinder receiving chamber, which can measure the distillation range of gasoline.
II. Main technical specifications
1.Power supply：AC（220±10%）V, 50Hz;
2.Heating power：≤2300W
3. Electric furnace heating power：1300W
4. Receiving cylinder：100 ml. Scale division 1 ml.
5.Distillation flask：125 ml, as per GB/T6536 and ASTM D86.
6.Thermometer：Total immersion. They are from ( -2 to 300 )℃ and from (-2 to 400) ℃. The scale divisions of them are 1 ℃.
7.Flask support board：Sic. Diameters of holes are φ32mm, 38mm, and 50mm.
8.Temperature controller of condensing tube：
(1) Range：0 ℃ to 60 ℃
(2) Display：LED
9.Temperature controller of receiving room：
(1) Range：0 ℃ to ambient
(2) Display：LED
10.Ambient temperature：15℃～28℃
Relative humidity：≤85%
11.Dimension：540mm×435mm×515mm
12. Net weight：30kg.
