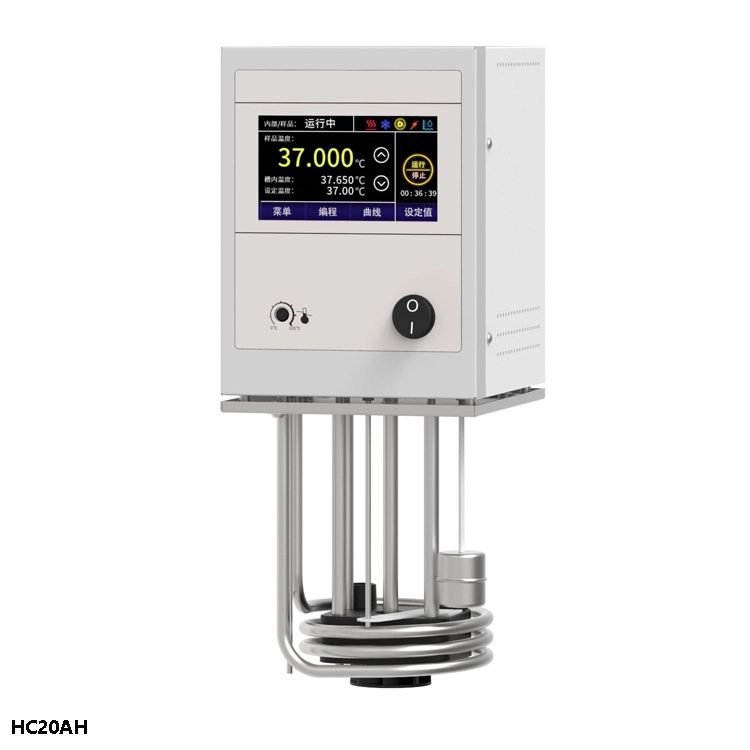

Heating Immersion Circulators AH type(advanced type)

Availability:
Quantity:
Inquire Add to Basket

Features：

lThree-point calibration function.

lAdvanced PID control, control accuracy ±0.02.

lCIT and refrigeration unit interface;

lInternal and external circulation function, higher pressure and larger flow rate

lFour levels of safety protection: low liquid level protection, adjustable safety temperature protection, high and low temperature limits, intelligent pump current protection

lAH maximum temperature is 200°C, TFT display, display accuracy 0.001, touch control, each operating status of the machine can be displayed on the screen, the display curve display can be upgraded, the program control can be upgraded, and the slope/linear temperature rise control can be upgraded

lWhen AH is upgraded to program control, add P after the model number.



Parameters:

Model

HC20AH

HC30AH

Working temperature range (°C)

RT+5...200

RT+5...200

Temperature stability (°C)

±0.02

±0.02

Heating capacity (W)

2000

3000

Pump capacity flow rate (L/min)

0-33.3

0-33.3

Pump pressure(bar)

0-0.7

0-0.7

Pump suction

0-0.4

0-0.4

Immersion depth(mm)

63...130

63...130

dimensions WxDxH(mm)

136X151X336

136X151X336
