Features:
1) Six pieces of long service life Peltier heating units and can independently control 6 temperature zones;
2) Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.
3) High heating and cooling rate, max. Ramping rate 6 ℃/s, can save your precious time;
4) Stepless adjustable hot lid, fit tubes of different heights to avoid tube melt and evaporation.
5) Windows interface, 8” ( 800×600, 16 colors) TFT color touch-screen with graphical display provides easy use for setting up and monitoring.
6) Built-in 11 standard program file template, can quickly edit the required files.
7) Folder management, user can build directory.
8) The running program and left time can be displayed in real time, allow to edit file when program is running.
9) One-click quick incubation function can meet experiment's needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
10) Internal flash memory for 10000 typical PCR files in free configurable folders.
11) Hot lid temperature and hot lid work mode can be set to meet different experiment's need.
12) Automatic restart after power failure. When power is restored it can continue to run unfinished program.
13) GLP report records every step to provide accurate data support for experiment result analysis.
14) User Login Management, three-tier permission, password protection function to ensure data security.
15) Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.
16) Support USB and LAN to update software.
17) One computer can control many sets of PCR via network connection.
18) Min type Bluetooth printer as an option, easily record information.
19) Support email-alert function when experiment is over.
Performance：

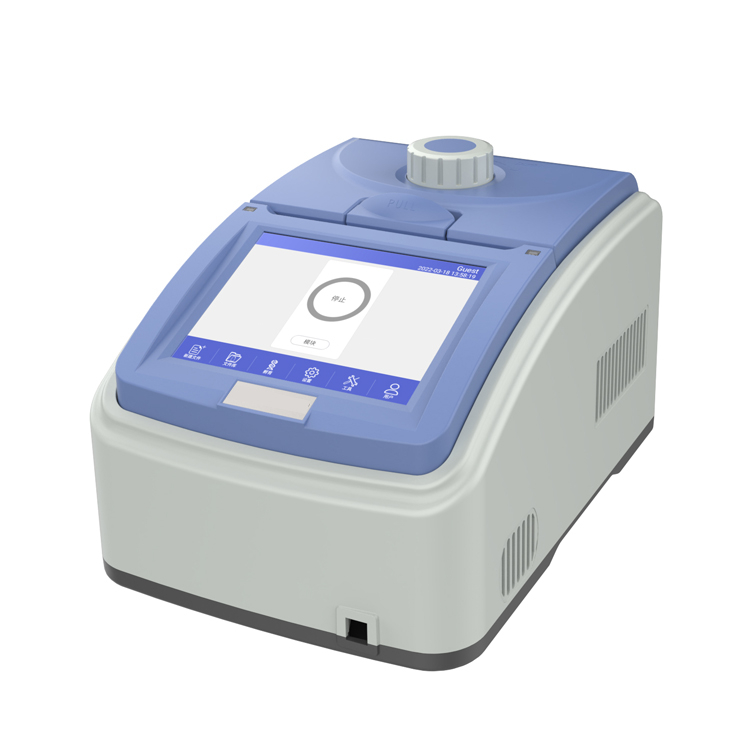

Model No. | GET96-PLUS |
Capacity | 96×0.2ml（6 independent 16 well block） |
Temperature Range | 4-100℃ |
MAX. Heating Rate | 6℃/s |
MAX. Cooling Rate | 4℃/s |
Uniformity | ≤±0.3℃ |
Accuracy | ≤±0.2℃ |
Display Resolution | 0.1℃ |
Temperature Control | BlockTube |
Ramping Rate Adjustable | 0.1-6℃ |
Gradient Temp. Range | 30-100℃ |
Gradient Spread | Temperature difference of adjacent temperature zone is 0.1-5℃. 6 temperature zones in total |
Hot Lid Temperature | 30-110℃ |
Hot Lid Height Adjustable | Stepless Adjustable |
Number of Programs | 10000 +(USB FLASH) |
Max. No. of Step | 30 |
Max. No. of Cycle | 100 |
Time Increment/Decrement | 1 Sec - 600 Sec |
Temp. Increment/Decrement | 0.1-10.0℃ |
Pause Function | Yes |
Auto Data Protection | Yes |
Hold at 4℃ | Forever |
Touchdown Function | Yes |
Long PCR Function | Yes |
Language | English |
LAN to computer | Yes |
LCD | 8 inch，800×600 pels, |
Communication | USB2.0 , LAN |
Dimensions | 390mm×270mm×255mm (L×W×H) |
Weight | 9kg |
Power Supply | 85-264VAC , 47-63Hz , 600 W |
