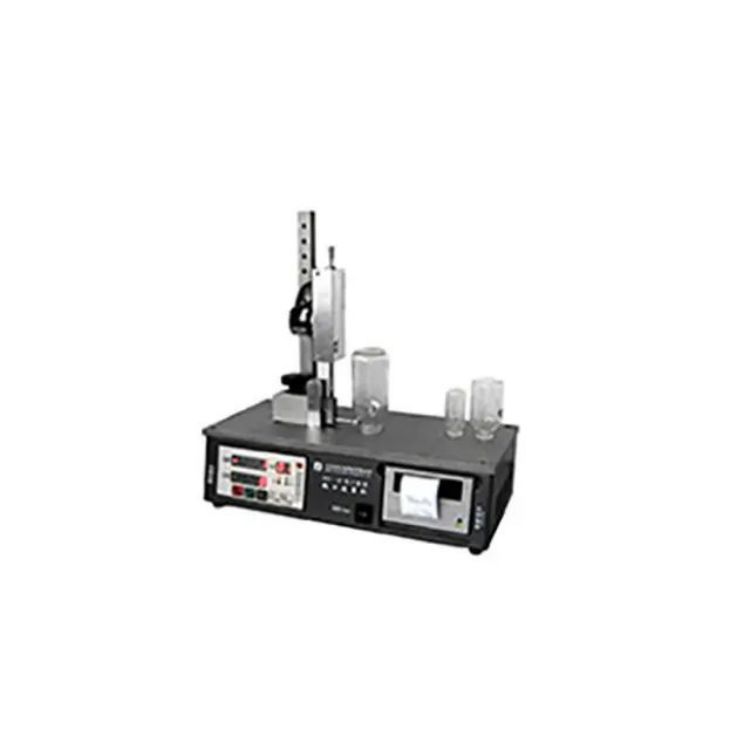

BHY-40 Digital Pulsation Apparatus

1. Basic type

2. Enhanced type: (basic type + functional software) has data storage, statistics, curve distribution, percentage chart, etc., and an external computer is provided by yourself.

Applications:

Technical characteristics:

1. The thickness of the bottle mouth has a special shape, and the thickness around the bottle mouth varies in size. Therefore, the test method is adopted while rotating and pushing forward;

2. Measured values are displayed digitally in real time for easy observation and selection;

3． The measurement value is accurate and stable, and the displacement sensor has high precision and long life;

4. It has high performance-price ratio, convenient and reliable technical services.

Technical Parameters:

1. Probe range: 0-40mm;

2. Probe grid value: 0.01mm;

3． Indication accuracy: 0.1mm;

4. Display and output: digital display, printout;

5. Appearance and weight: 390×190×400mm, about 10kG;

6． Optional special software can be connected to an external computer. (Data statistics, storage, analysis, graphing).
