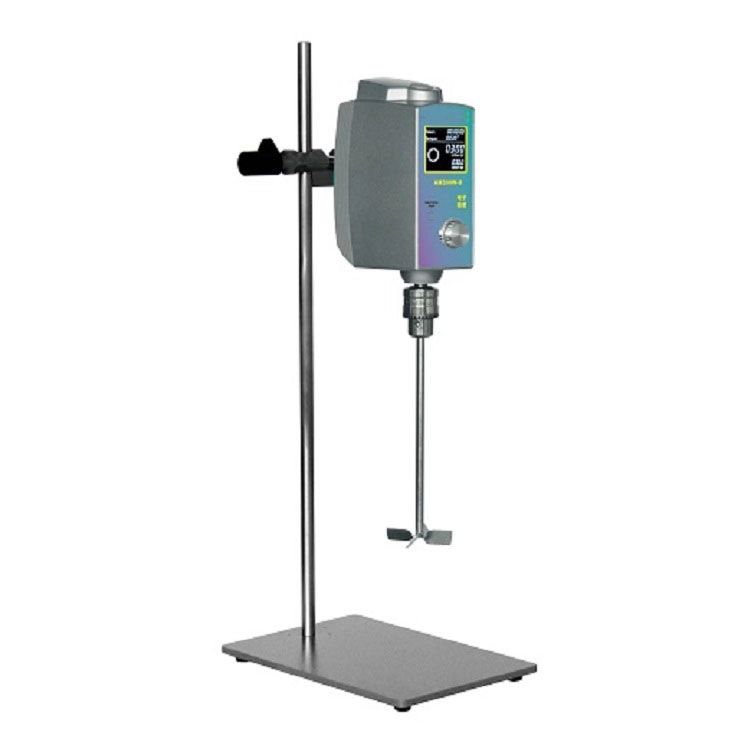

AM200/300W-O Overhead Stirrer

It is suitable for mixing liquid from low viscosity to high viscosity.The mixer has reasonable and compact structure, ultra-low noise and maintenance free.The stirring speed is controlled by microprocessor,which can timely and effec- tively compensate the speed change caused by load change and power supply voltage fluctuation.The constant speed is reliable.Built in automatic overload protection device to ensure the safety of long-term and high-load continuous
operation of the experiment;the rotary control of the
running state makes the operation of the experiment easier, and the mixing speed can be adjusted steplessly to meet
the requirements of adjusting the mixing speed at any time in the experiment;the digital display setting and the actual output mixing speed ensure the intuitive acquisition of
experimental data;

Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine parameters

Technical parameter		AM200W-O	AM300W-O
Rated voltage	AC/V	100~240	100~240
Rated frequency	HZ	50/60	50/60
Input power	W	295	440
Output power	W	200	300
Drive type		Brushless DC motor	Brushless DC motor
Output torque of mixing shaft	N.cm	40.2	60.1
Output peak torque of mixing shaft	N.cm	120	180
Working mode		S1(continuous)	S1(continuous)
Operation control method		Combined control knob	Combined control knob
Speed regulation range -no load	rpm	30~2000	30~2000
Speed control type		Infinity	Infinity
Running dynamic display		LCD	LCD
Timing control range	min	1~6000	1~6000
Fixing method of mixing rod		Quick chuck	Quick chuck
Clamping range of rotary chuck	mm	2~13	2~13
Mixing rod penetration diameter (shutdown)	mm	10	10
Agitator configuration (SS 316L stainless steel)		Four blade screw impeller	Four blade screw impeller
Treatment capacity (H2O)//Impeller material	L	30//SS316L stainless steel	50/SS316L stainless steel
Stirring viscosity	mPa.s	0~30000	0~50000
Allowable ambient temperature	℃	No mare than 40	No mare than 40
Allowable relative humidity	%	No mare than 80	No mare than 80
machine overall size	mm	215310720	215310720
Overall weight	kg	14.5	14.5
